Rockburner wrote: Tue Oct 31, 2023 7:12 pm

Horse wrote: Tue Oct 31, 2023 3:49 pm Not totally random because a. there's a theme and, b. there's a question.

Back to the Concordes. You know the wing shape? A long, flowing, S curve, yes?

But viewed from above, it has kinks!

There are very good, but very complicated reasons.

I'm sure there are reasons beyond a £multi-million practical joke

Gowon, give us a hint

NB my guess was to do with difference in air flow for the 'engine' and 'lift' parts of the wing.
Yes, I spent some time looking and wondering ...

They're even funkier if you look at them head on!



There's not gonna be a single reason, it's just the interaction of loads of (often conflicting) requirements. Not just aerodynamics, but also structural engineering, manufacturability etc.

But as above, loads of planes have 'kinked' wings, for loads of reasons.

Someone mentioned Vulcans? They have kinks...



Whereas B2s (and F22s and F35s) have only a very few angles, see how the tail is parallel to the wings and the front of the intakes/fuselage. There are only 2 or 3 'main angles' on the entire aircraft. That's for stealth reasons primarily.

Lots ok wing kinks, wing fences and sawtooth leading edges, on earlier generations of fast aircraft. Mostly to do with controlling spanwise flow, and ensuring the wingtips stall first.

I suspect that the latest stuff is designed using computer modelling to avoid the problems that kinks, wing fences and sawtooths were invented to cure.

The early B1 Vulcan's didn't have kinks. The B2 did.

Modern aircraft can be incredibly unstable, but it's not a problem because they fly by wire and a computer keeps everything in check.

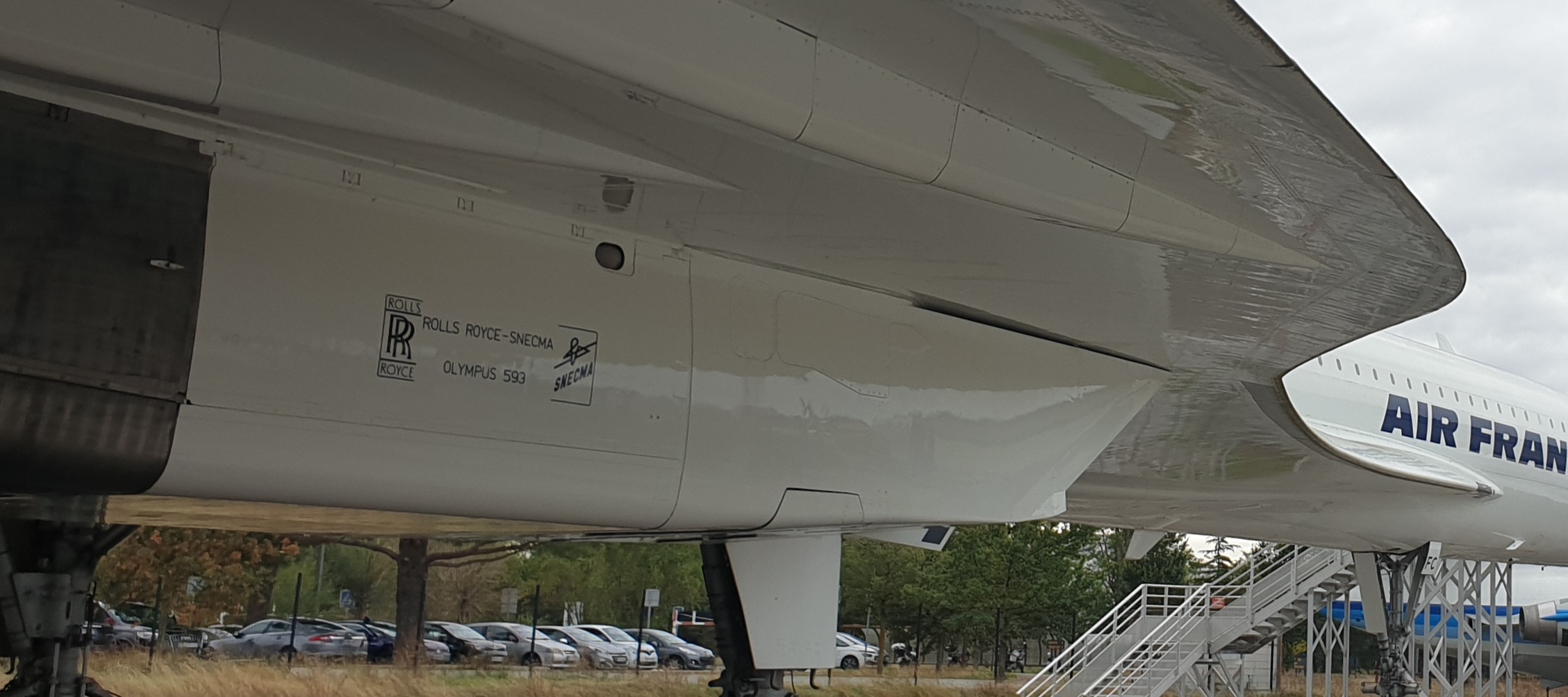

Mr. Dazzle wrote: Tue Oct 31, 2023 8:49 pm They're even funkier if you look at them head on!
