Dead Suzuki
Posted: Thu May 19, 2022 12:39 pm
by Yorick
Just put a new battery in my GSXR1000 and I may have touched a wire or something as now the whole bike is dead.
I've put old battery back, same thing, nada. Not even parking lights
The fuses next to the battery look OK, but is there a main fuse that controls everything?
I've looked online but my GoogleFu is poor today and can't find anything about main fuse for my bike, 2019 model
Any help ?
Re: Dead Suzuki
Posted: Thu May 19, 2022 12:42 pm
by ChrisW
Re: Dead Suzuki
Posted: Thu May 19, 2022 12:44 pm
by Le_Fromage_Grande
There will be one fuse to rule them all.
It's usually a 30 amp by the battery or with the rest of the fuses
Re: Dead Suzuki
Posted: Thu May 19, 2022 12:47 pm
by KungFooBob
You put the battery in the wrong way round first time didn't you?
Re: Dead Suzuki
Posted: Thu May 19, 2022 12:47 pm
by Yorick
I saw that. It's a previous model.
Re: Dead Suzuki
Posted: Thu May 19, 2022 12:47 pm
by Yorick
KungFooBob wrote: Thu May 19, 2022 12:47 pm
You put the battery in the wrong way round first time didn't you?
Won't go wrong way
Re: Dead Suzuki
Posted: Thu May 19, 2022 12:49 pm
by Yorick
Le_Fromage_Grande wrote: Thu May 19, 2022 12:44 pm
There will be one
fuse to rule them all.
It's usually a 30 amp by the battery or with the rest of the fuses

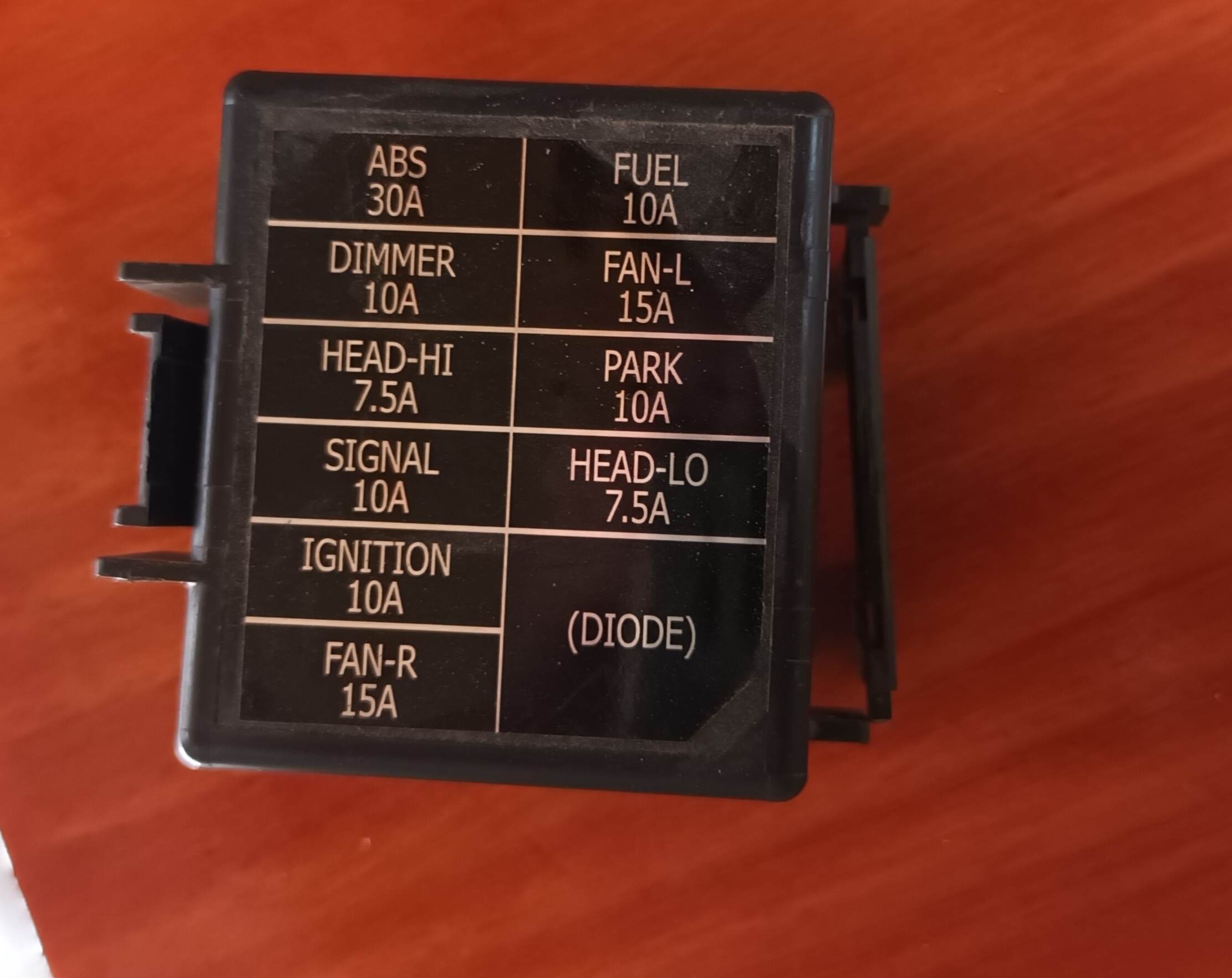

- 20220519_124839.jpg (530.59 KiB) Viewed 711 times
Re: Dead Suzuki
Posted: Thu May 19, 2022 12:53 pm
by The Spin Doctor
Occasionally, it can be difficult to spot a blown fuse... test it with a meter...
Re: Dead Suzuki
Posted: Thu May 19, 2022 12:58 pm
by Le_Fromage_Grande
There's another fuse near the battery (AKA Mordor)
Re: Dead Suzuki
Posted: Thu May 19, 2022 12:59 pm
by KungFooBob
The main fuse is with with the starter relay.
It's under the pillion seat/left side.
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:01 pm
by ChrisW
Le_Fromage_Grande wrote: Thu May 19, 2022 12:58 pm
There's another
fuse near the battery (AKA Mordor)
Part 3 this on this diagram, apparently:
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:03 pm
by Yorick
KungFooBob wrote: Thu May 19, 2022 12:59 pm
The main
fuse is with with the starter relay.
It's under the pillion seat/left side.
Is there a diagram?
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:05 pm
by Yorick

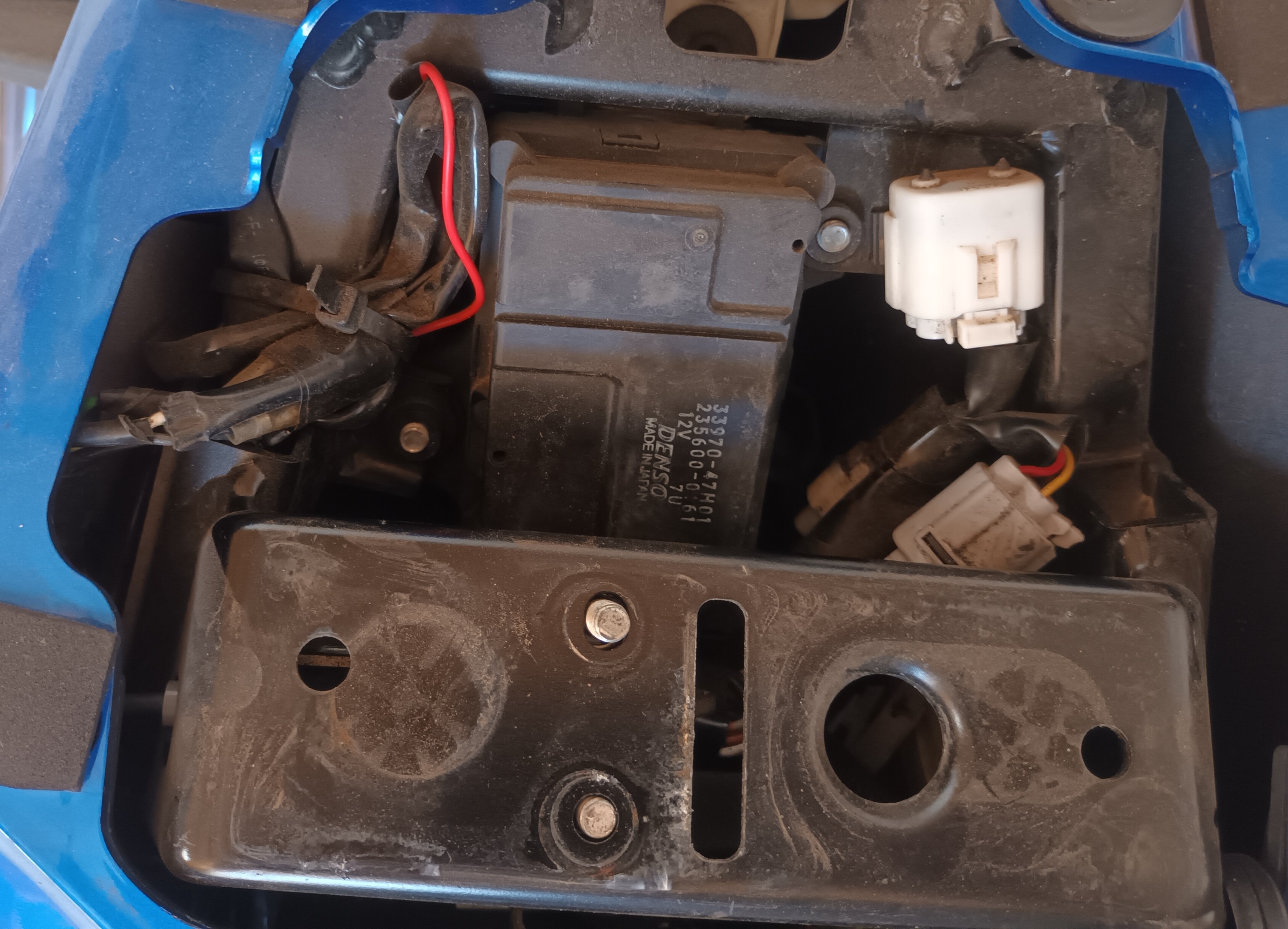

- 20220519_130455.jpg (1.08 MiB) Viewed 678 times
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:11 pm
by Le_Fromage_Grande
Further forward, you'll need to take the left hand side panel off
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:19 pm
by Yorick
- 20220519_131844.jpg (910.58 KiB) Viewed 662 times
Nothing obvious...
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:21 pm
by Le_Fromage_Grande
It's the green thing under the white plastic cover on the left of your picture
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:22 pm
by Le_Fromage_Grande
Is the blue fuse for the immobilizer?
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:23 pm
by Yorick
ChrisW wrote: Thu May 19, 2022 1:01 pm
Le_Fromage_Grande wrote: Thu May 19, 2022 12:58 pm
There's another
fuse near the battery (AKA Mordor)
Part 3 this on this diagram, apparently:
Just printed this off. Missed it earlier
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:25 pm
by Yorick
Le_Fromage_Grande wrote: Thu May 19, 2022 1:22 pm
Is the blue
fuse for the immobilizer?
Alarm
Re: Dead Suzuki
Posted: Thu May 19, 2022 1:26 pm
by ChrisW
Yorick wrote: Thu May 19, 2022 1:23 pm
ChrisW wrote: Thu May 19, 2022 1:01 pm
Le_Fromage_Grande wrote: Thu May 19, 2022 12:58 pm
There's another
fuse near the battery (AKA Mordor)
Part 3 this on this diagram, apparently:
Just printed this off. Missed it earlier
From here, in case you need it in the future:
https://www.bike-parts-suz.com/suzuki-m ... 32/E/12889
